Hyperthyroidism

Terminology

Thyrotoxicosis

High thyroid hormone action in tissues secondary to elevated thyroid hormone levels (can be thought of as symptomatic hyperthyroidism)

Hyperthyroidism

Subset of thyrotoxicosis.
Due to inappropriately high thyroid hormone synthesis & secretion by the thyroid gland.

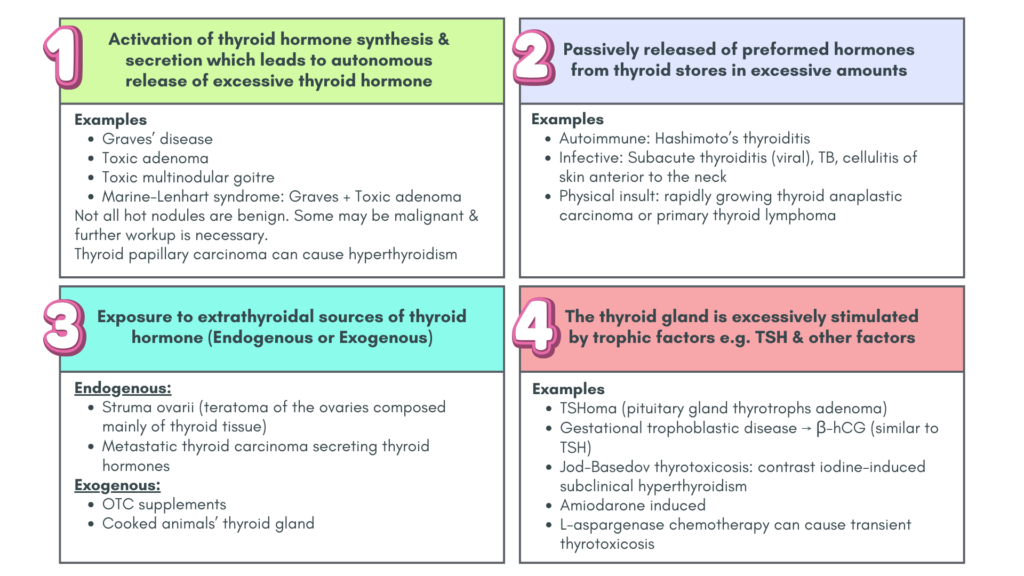

4 main causes of thyrotoxicosis

Treatment

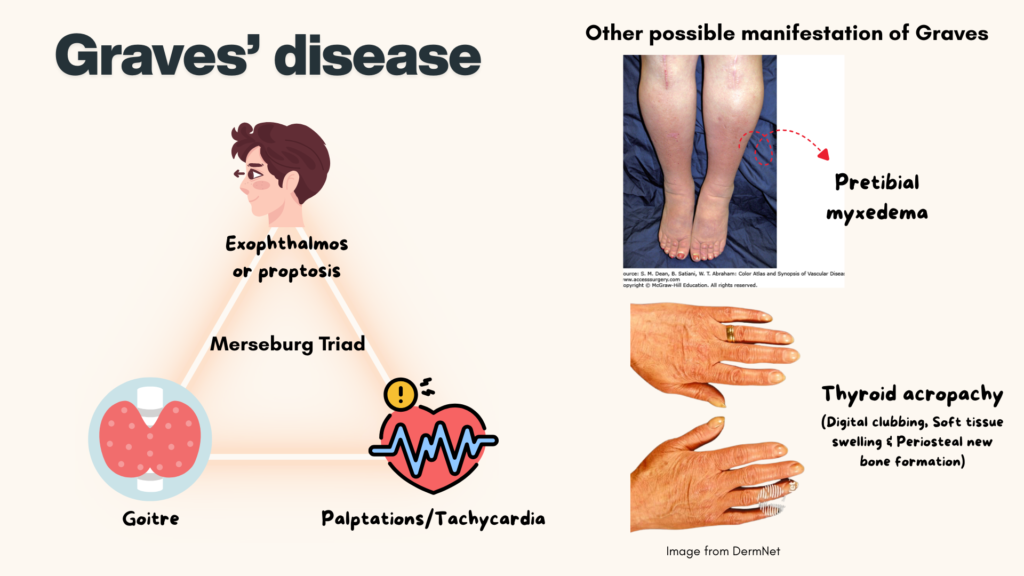

Graves’ disease

Symptomatic treatment

Options: propranolol, atenolol, metoprolol, or other beta-blockers

• CCB, both verapamil & diltiazem may be used to control HR in those who do not tolerate β-blockers

β-blockers is recommended in all symptomatic patients, especially elderly, those whose resting HR > 90 bpm or having coexistent cardiovascular disease

Initial treatment options for Graves’ hyperthyroidism

1. 131 I therapy (radioactive iodine)
2. Antithyroid drugs (ATD)
3. Thyroidectomy

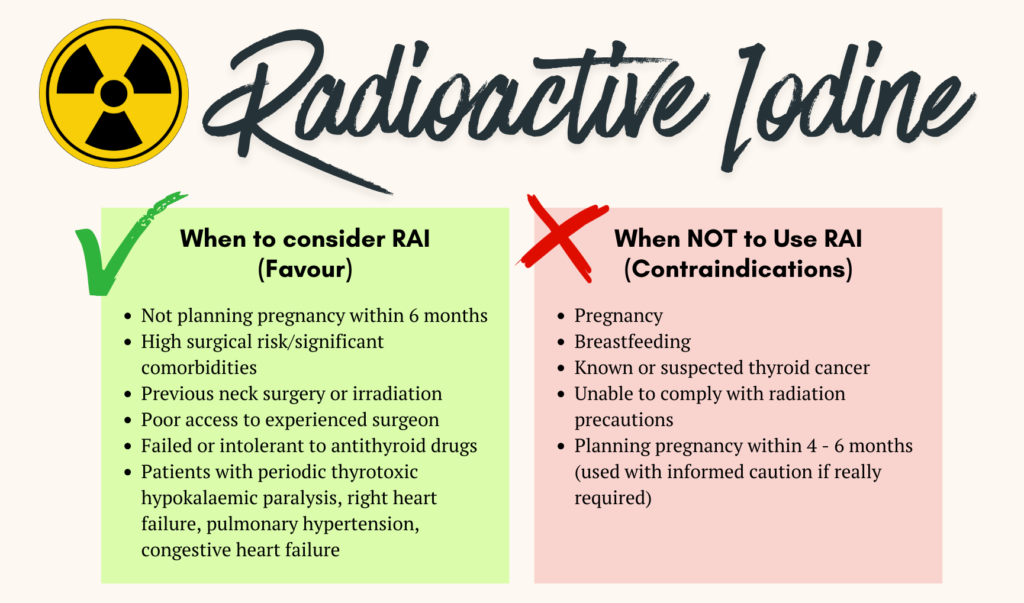

Radioactive iodine (RAI) ☢️

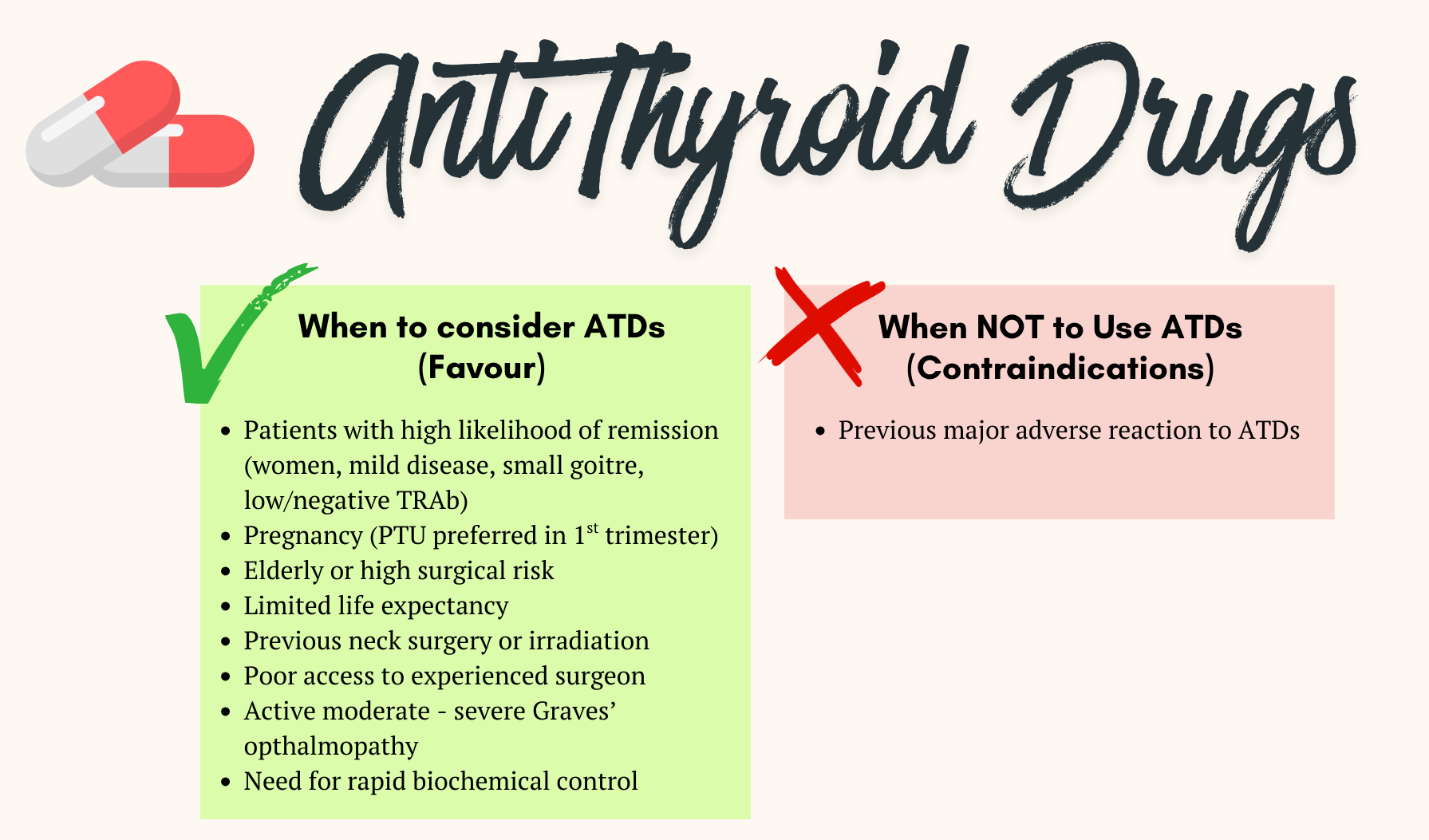

Antithyroid drugs 💊

ATDs include carbimazole, methimazole (MMI) and propylthiouracil (PTU)

Goal is to render patient euthyroid.

Do not cure Graves.

When they fail to achieve euthyroidism, the usual cause is nonadherence.

ATDs include carbimazole, methimazole (MMI) and propylthiouracil (PTU)

Carbimazole and MMI (preferred)

• Carbimazole is rapidly converted to MMI in the serum (10 mg of carbimazole is metabolized to ~6mg of MMI)
• Both are effective as OD.
• Start of MMI,
  • Initial doses of 10 – 30 mg OD are used to restore euthyroidism, & the dose can then be titrated down to a maintenance (generally 5 – 10 mg OD).
  • ADR are more frequent with higher MMI doses.
  • When more rapid biochemical control is needed, initial split dose of MMI (e.g. 15 mg or 20 mg BD) may be more effective than a single daily dose because the duration of action of MMI may be less than 24 hours.
• It is important to monitor serum T3 levels initially because some pt normalise their free T4 levels with MMI, but have persistently elevated serum T3, indicating continuing thyrotoxicosis.

Propylthiouracil (PTU)

• MMI has the benefit of OD administration, & reduced risk of major side effects compared to PTU.
• PTU has shorter duration of action.
  • Administered BD or TDS
  • Starting with 50 – 150 mg TDS
  • Maintenance PTU dose of 50 mg BD or TDS

Adverse effects of ATDs

• Common: minor allergic side effects e.g. pruritus or a limited, minor rash (more common with PTU or higher dose MMI 30 mg/day)
• Rare but serious allergic/toxic events: agranulocytosis, vasculitis, or hepatic damage.

A pt is considered to be in remission if they have had a normal serum TSH, free T4, & free T3 for a year after discontinuation of ATD.

Higher initial doses of MMI (60 – 80 mg/day) do not improve remission rates (They increase the risk of side effects & are not recommended).

If a patient experiences a relapse at follow up, RAI therapy or surgery can be considered.

If ATD is chosen as the primary therapy, the medication should be continued for about 12 – 18 months, & then discontinued if TSH levels are normal at that time.

• If patient is still hyperthyroid after a course of MMI, consider RAI or thyroidectomy

Thyroidectomy

Toxic Multinodular Goitre (TMNG) or Toxic Adenoma (TA)

2 effective & relatively safe options:

1. RAI therapy
2. Thyroid surgery

ATDs can be considered for those with:

• Advanced age
• Comorbidities with increased surgical risk
• Decreased life expectancy
• Poor candidate for ablative therapy.

Goal of therapy: Rapid & durable elimination of the hyperthyroid state.

Euthyroidism is achieved within days after surgery. However, the risk of hypothyroidism & the requirement for exogenous thyroid hormone therapy is 100% after near-total/total thyroidectomy.

In addition to β-blockade, pretreatment with MMI prior to RAI therapy should be considered in those who are at risk for complications d/t worsening of hyperthyroidism.

If surgery is chosen as treatment, pt with overt hyperthyroidism should be rendered euthyroid prior to the procedure with MMI pretreatment ± β-blockade.

RAI therapy should be used for retreatment of persistent/recurrent hyperthyroidism following inadequate surgery for TMNG/TA.

Follow up

Post RAI

• Response to RAI can be assessed by monitoring size of the gland, TFT, clinical SSx.
• Normalization of TFT & improvement of clinical Sx within 1 – 2 months.
• Hypothyroidism may occur from 4 weeks onwards, more commonly btw 2 – 6 months.
  – Timing of thyroid hormone replacement should be determined by results of TFT, clinical Sx & physical examination.
  – Indicated by FT4 below normal range – levothyroxine should be instituted.
  – TSH levels may not rise immediately, thus should not be used initially to determine the need for levothyroxine.
• Gradual tapering of B-blockers and ATDs.
• Once euthyroid, lifelong annual TFT, or if pt has SSx of hyper/hypothyroidism.
• If hyperthyroidism persist after 6 months, re-treatment with RAI is suggested.
  – In some with minimal response 3 months after therapy, additional RAI may be considered.
• Refractory hyperthyroidism: consider surgery

Treated with ATD

• FT4 & FT3 at about 2 – 6 weeks to adjust meds accordingly.
  – FT3 should be monitored as FT4 may normalize despite persistent elevation of FT3.
  – Serum TSH may remain suppressed for several months, thus not recommended to monitor early in the course of therapy.
• Once euthyroid, dose of MMI can usually be decreased by 30 – 50% & biochemical testing repeated in 4 – 6 weeks.
  – Once on minimal dose of meds, can f/up with clinical & lab evaluation at intervals of 2 – 3 months.
  – If pt is on long-term MMI (> 18 months), the interval can be increased to 6 months.
• TO TAKE NOTE
  – Differential WBC count should be obtained during febrile illness & at the onset of pharyngitis in all pt taking ATD.
  – LFT should be assess in pt taking MMI/PTU who experience pruritic rash, jaundice, pale stool or dark urine, joint pain, abdominal pain or bloating, anorexia, nausea, or fatigue.

When to refer

• Hyperthyroidism due to toxic multinodular goitre or toxic adenoma – for RAI/surgical intervention.
• Graves’ disease which failed ATDs or Relapsing Graves’ disease
• Hyperthyroid patient with other comorbidities or who develop comorbidities.

Subclinical hyperthyroidism

Suppressed serum TSH with normal fT3 & fT4 concentrations.

Etiology similar to that of overt hyperthyroidism.

Algorithm for approaching subclinical hyperthyroidism

When or who should we treat?

Current evidence suggest that subclinical hyperthyroidism is likely to cause AF, may probably increase the risk of mortality & fractures and possibly cause heart failure & cardiovascular events.

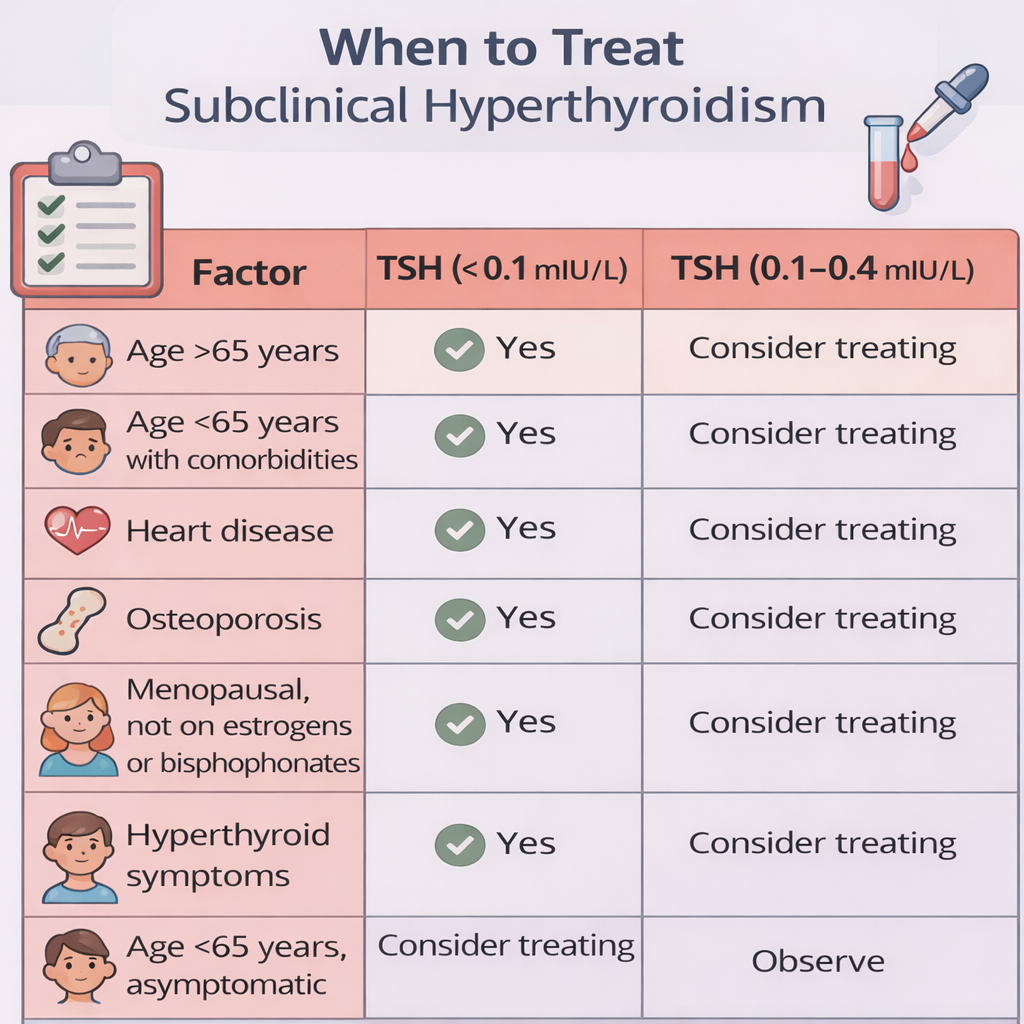

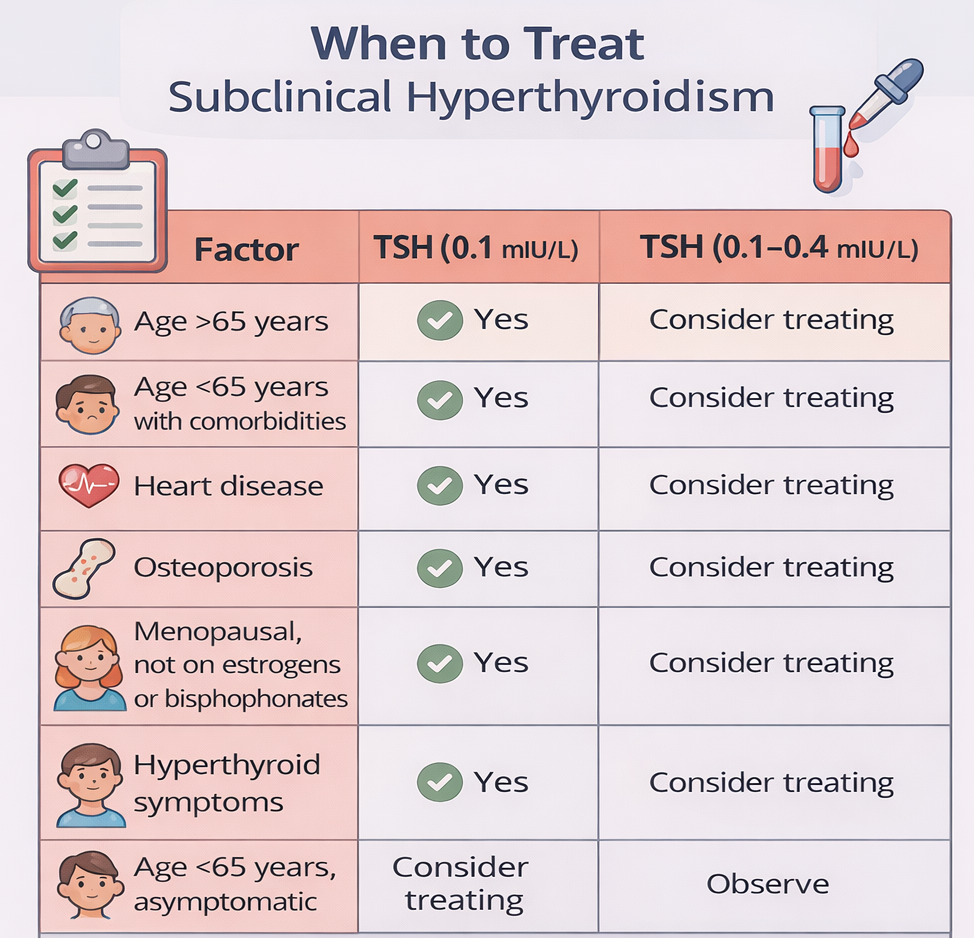

Below are factors to take into consideration when deciding whether to treat or not.

β-blockers should be instituted in patients with subclinical hyperthyroidism.

ATDs should be 1st line and initial treatment for subclinical hyperthyroidism, whatever the etiology.

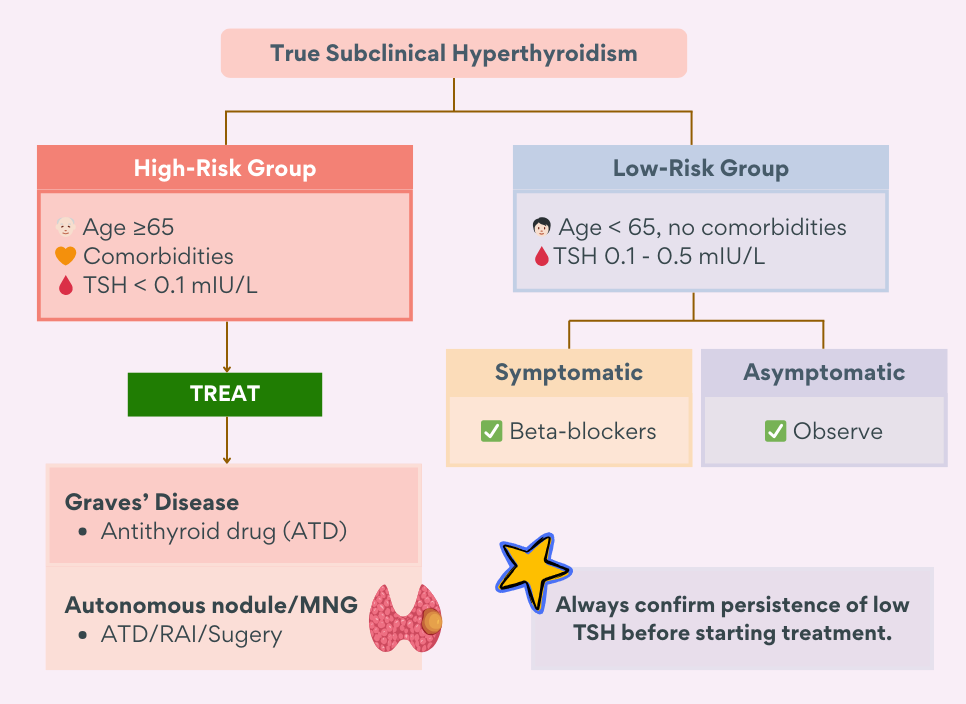

Algorithm for treatment

References

Malaysian Endocrine and Metabolic Society, & Ministry of Health Malaysia. (2019). Clinical practice guidelines: Management of thyroid disorders. Putrajaya: Ministry of Health Malaysia.
